Generac - 10/14/18 kW - Generator

CONTACT US

INCLUDES:

  • True Power™ Electrical Technology
  • Two-line multilingual digital LCD Evolution™ controller(English/Spanish/French/Portuguese)
  • Two transfer switch options available:
  • 100 amp 16 circuit switch or
  • 200 amp service rated smart switch
  • Electronic governor
  • Standard Wi-Fi® connectivity
  • System status & maintenance interval LED indicators
  • Sound attenuated enclosure
  • Flexible fuel line connector
  • Natural gas or LP gas operation
  • 5 Year limited warranty
  • Listed and labeled by the Southwest Research Institute
  • allowing installation as close as 18 in (457 mm) to a
  • structure.*


*Must be located away from doors, windows, and fresh air intakes and in accordance with local codes.

https://assets.swri.org/library/DirectoryOfListedProducts/ConstructionIndustry/973_DoC_204_13204-01-01_Rev9.pdf

Standby Power Rating

G007171-0, G007172-0 (Aluminum - Bisque) – 10 kW 60 Hz G007223-0, G007224-0, G007225-0 (Aluminum - Bisque) – 14 kW 60 Hz G007226-0, G007228-0 (Aluminum - Bisque) – 18 kW 60 Hz

Note: CETL or CUL certification only applies to unbundled units and units packaged with limited circuit switches. Units packaged with the Smart Switch are ETL or UL certified in the USA only

FEATURES

  • INNOVATIVE ENGINE DESIGN & RIGOROUS TESTING are at the heart of Generac’s success in providing the most reliable generators possible. Generac’s GForce engine lineup offers added peace of mind and reliability for when you need it the most. The G-Force series engines are purpose built and designed to handle the rigors of extended run times in high temperatures and extreme operating conditions.


  • TRUE POWER™ ELECTRICAL TECHNOLOGY: Superior harmonics and sine wave form produce less than 5% Total Harmonic Distortion for utility quality power. This allows confident operation of sensitive electronic equipment and micro-chip based appliances, such as variable speed HVAC systems.


  • TEST CRITERIA:
  • PROTOTYPE TESTED
  • NEMA MG1-22 EVALUATION
  • SYSTEM TORSIONAL TESTED
  • MOTOR STARTING ABILITY
  • MOBILE LINK® WI-FI CONNECTIVITY: FREE with select Guardian Series home standby generators, Mobile Link Wi-Fi allows users to monitor the status of the generator from anywhere in the world using a smartphone, tablet, or PC. Easily access information such as the current operating status and maintenance alerts. Users can connect an account to an authorized service dealer for fast, friendly, and proactive service. With Mobile Link, users are taken care of before the next power outage.
  • SOLID-STATE, FREQUENCY COMPENSATED VOLTAGE REGULATION: This state-of-the-art power maximizing regulation system is standard on all Generac models. It provides optimized FAST RESPONSE to changing load conditions and MAXIMUM MOTOR STARTING CAPABILITY by electronically torque-matching the surge loads to the engine. Digital voltage regulation at ±1%.


  • SINGLE SOURCE SERVICE RESPONSE from Generac’s extensive dealer network provides parts and service know-how for the entire unit, from the engine to the smallest electronic component.


  • GENERAC TRANSFER SWITCHES: Long life and reliability are synonymous with GENERAC POWER SYSTEMS. One reason for this confidence is the GENERAC product line is offered with its own transfer systems and controls for total system compatibility.

Engine

  • Generac G-Force design
  • Maximizes engine “breathing” for increased fuel efficiency. Plateau honed cylinder walls and plasma moly rings help the engine run cooler, reducing oil consumption and resulting in longer engine life.
  • “Spiny-lok” cast iron cylinder walls
  • Rigid construction and added durability provide long engine life.
  • Electronic ignition/spark advance
  • These features combine to assure smooth, quick starting every time
  • Full pressure lubrication system
  • Pressurized lubrication to all vital bearings means better performance, less maintenance, and longer engine life. Now featuring up to a 2 year/200 hour oil change interval.
  • Low oil pressure shutdown system
  • Shutdown protection prevents catastrophic engine damage due to low oil.
  • High temperature shutdown
  • Prevents damage due to overheating.

Generator

  • Revolving field
  • Allows for a smaller, light weight unit that operates 25% more efficiently than a revolving armature generator.
  • “Skewed stator
  • Produces a smooth output waveform for compatibility with electronic equipment.
  • Displaced phase excitation
  • Maximizes motor starting capability.
  • Automatic voltage regulation
  • Regulating output voltage to ±1% prevents damaging voltage spikes.
  • UL 2200 listed
  • For your safety.

Transfer Switch (if applicable)

  • Fully automatic
  • Transfers vital electrical loads to the energized source of power.
  • NEMA 3R
  • Can be installed inside or outside for maximum flexibility.
  • Remote mounting
  • Mounts near an existing distribution panel for simple, low-cost installation.

Evolution™ Controls

  • AUTO/MANUAL/OFF illuminated buttons
  • Select the operating mode and provide easy, at-a-glance status indication in any condition.
  • Two-line multilingual LCD
  • Provides homeowners easily visible logs of history, maintenance, and events up to 50 occurrences.
  • Sealed, raised buttons
  • Smooth, weather-resistant user interface for programming and operations.
  • Utility voltage sensing
  • Constantly monitors utility voltage, setpoints 65% dropout, 80% pick-up, of standard voltage
  • Generator voltage sensing
  • Constantly monitors generator voltage to verify the cleanest power is delivered to the home.
  • Utility interrupt delay
  • Prevents nuisance startups of the engine, adjustable 2–1500 seconds from the factory default setting of 5 seconds by a qualified dealer
  • Engine warm-up
  • Verifies engine is ready to assume the load. Setpoint approximately 5 seconds
  • Engine cool-down
  • Allows engine to cool prior to shutdown. Setpoint approximately 1 minute.
  • Programmable exercise
  • Operates engine to prevent oil seal drying and damage between power outages by running the generator for 5 minutes every other week. Offers a selectable setting for weekly or monthly operation, providing flexibility and potentially lower fuel costs to the owner.
  • Smart battery charger
  • Delivers charge to the battery only when needed at varying rates depending on outdoor air temperature. Compatible with lead acid and AGM-style batteries.
  • Main line circuit breaker
  • Protects generator from overload.
  • Electronic governor
  • Maintains constant 60 Hz frequency.

Unit

  • SAE weather protective enclosure s
  • Sound attenuated enclosures ensure quiet operation and protection against mother nature, withstanding winds up to 150 mph (241 km/h). Hinged key locking roof panel for security. Lift-out front for easy access to all routine maintenance items. Electrostatically applied textured epoxy paint for added durability.
  • Enclosed critical grade muffler
  • Quiet, critical grade muffler is mounted inside the unit to prevent injuries.
  • Small, compact, attractive
  • Makes for an easy, eye appealing installation, as close as 18 in (457 mm) away from a structure.

Installation System

  • 14 in (35.6 cm) flexible fuel line connector
  • Listed ANSI Z21.75/CSA 6.27 outdoor appliance connector for the required connection to the gas supply piping.
  • Integral sediment trap
  • Meets IFGC and NFPA 54 installation requirements.

Connectivity

  • Ability to view generator status
  • Monitor your generator with a smartphone, tablet, or computer at any time via the Mobile Link application for complete peace of mind.
  • Ability to view generator Exercise/Run and Total Hours
  • Review the generator's complete protection profile for exercise hours and total hours.
  • Ability to view generator maintenance information
  • Provides maintenance information for your specific model generator when scheduled maintenance is due.
  • Monthly report with previous month’s activity
  • Detailed monthly reports provide historical generator information.
  • Ability to view generator battery information
  • Built in battery diagnostics displaying current state of the battery
  • Weather information
  • Provides detailed local ambient weather conditions for generator location.

Generator

Model G007171-0, G007172-0 (10 kW) G007223-0, G007224-0, G007225-0 (14 kW) G007226-0, G007228-0 (18 kW)
Rated maximum continuous power capacity (LP) 10,000 Watts* 14,000 Watts* 18,000 Watts*
Rated maximum continuous power capacity (NG) 9,000 Watts* 14,000 Watts* 17,000 Watts*
Rated voltage 240
Rated maximum continuous load current – 240 volts (LP/NG) 41.7 / 37.5 58.3 / 58.3 75.0 / 70.8
Total Harmonic Distortion Less than 5%
Main line circuit breaker 60 Amp 80 Amp
Phase 1
Rated AC frequency 60 Hz
Power factor 60 Hz
Battery requirement (not included) 12 Volts, Group 26R 540 CCA Minimum or Group 35AGM 650 CCA Minimum
Unit weight (lb/kg) 385/175 420/191
Dimensions (L x W x H) in / cm 48 x 25 x 29 / 121.9 x 63.5 x 73.7
Sound output in dB(A) at 23 ft (7 m) with generator operating at normal load** 61 65 65
Sound output in dB(A) at 23 ft (7 m) with generator in Quiet-Test™ low-speed exercise mode** 57 55 55
Exercise duration 2

Engine

Controls

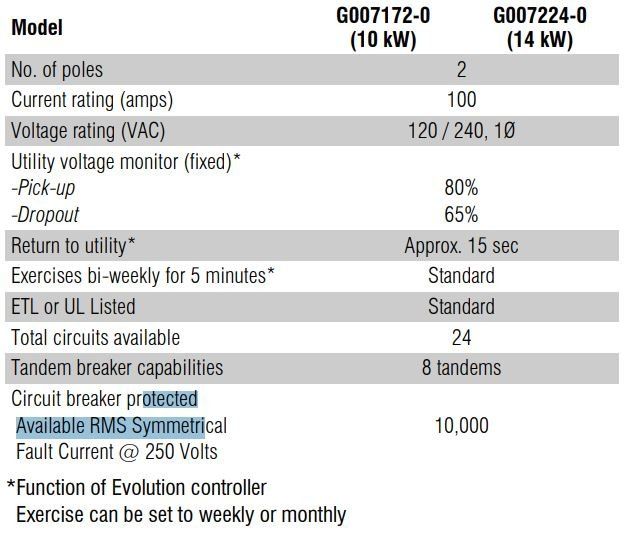

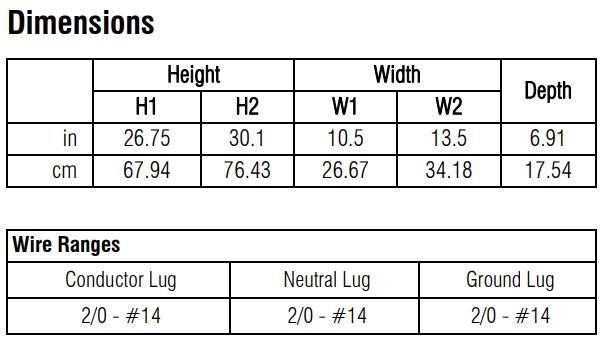

Limited Circuits Switch Features

  • 16 space, 24 circuit. Breakers not included.
  • Electrically operated, mechanically-held contacts for fast, positive connections.
  • Rated for all classes of load, 100% equipment rated, both inductive and resistive.
  • 2-pole, 250 VAC contactors.
  • 30 millisecond transfer time.
  • Dual coil design.
  • Rated for both copper and aluminum conductors.
  • Main contacts are silver plated or silver alloy to resist welding and sticking.
  • NEMA/UL 3R aluminum outdoor enclosure allows for indoor or outdoor mounting flexibility.
  • Multi listed for use with 1 in standard, tandem, GFCI, and AFCI breakers from Siemens, Murray, Eaton, and Square D for the most flexible and cost effective install.

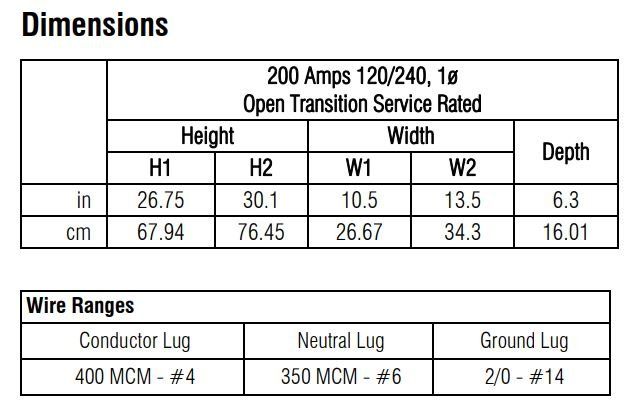

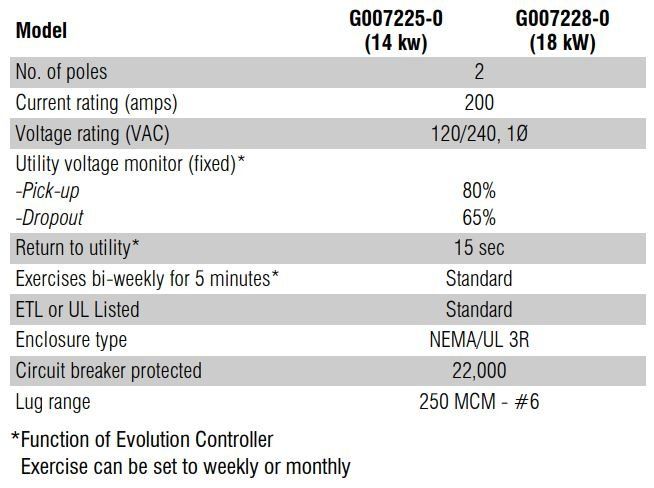

Service Rated Smart Switch Features

  • Includes Smart A/C Management (SACM) module standard.
  • Intelligently manages up to four air conditioner loads with no additional hardware.
  • Up to eight large (240 VAC) loads can be managed with Smart Management
  • Modules (SMMs).
  • Electrically operated, mechanically-held contacts for fast, clean connections.
  • Rated for all classes of load, 100% equipment rated, both inductive and resistive.
  • 2-pole, 250 VAC contactors.
  • Service equipment rated, dual coil design.
  • Rated for both aluminum and copper conductors.
  • Main contacts are silver plated or silver alloy to resist welding and sticking.
  • NEMA/UL 3R aluminum outdoor enclosure allows for indoor or outdoor mounting flexibility.

Available Accessories

Model # Product Description
G005819-0 26R Wet Cell Battery Every standby generator requires a battery to start the system. Generac offers the recommended 26R wet cell battery for use with all air-cooled standby product (excluding PowerPact®).
G007101-0 Battery Pad Warmer The pad warmer rests under the battery. Recommended for use if the temperature regularly falls below 0 °F (-18 °C). (Not necessary for use with AGM-style batteries).
G007102-0 Oil Warmer Oil warmer slips directly over the oil filter. Recommended for use if the temperature regularly falls below 0 °F (-18 °C).
G007103-1 Breather Warmer The breather warmer is for use in extreme cold weather applications. For use with Evolution controllers only in climates where heavy icing occurs.
G005621-0 Auxiliary Transfer Switch Contact Kit The auxiliary transfer switch contact kit allows the transfer switch to lock out a single large electrical load you may not need. Not compatible with 50 amp pre-wired switches
G007027-0 - Bisque Fascia Base Wrap Kit The fascia base wrap snaps together around the bottom of the new air cooled generators. This offers a sleek, contoured appearance as well as offering protection from rodents and insects by covering the lifting holes located in the base.
G005703-0 - Bisque Touch-Up Paint Kit If the generator enclosure is scratched or damaged, it is important to touch up the paint to protect from future corrosion.
G006482-0 – 10 kW G007216-0 – 14 / 18 kW Scheduled Maintenance Kit Generac's scheduled maintenance kits provide all the items necessary to perform complete routine maintenance on a Generac automatic standby generator (oil not included).
G007005-0 Wi-Fi LP Fuel Level Monitor The Wi-Fi enabled LP fuel level monitor provides constant monitoring of the connected LP fuel tank. Monitoring the LP tank's fuel level is an important step in verifying the generator is ready to run during an unexpected power failure. Status alerts are available through a free application to notify users when the LP tank is in need of a refill.
G007000-0 (50 amps) G007006-0 (100 amps) Smart Management Module Smart Management Modules (SMM) are used to optimize the performance of a standby generator. It manages large electrical loads upon startup and sheds them to aid in recovery when overloaded. In many cases, using SMM’s can reduce the overall size and cost of the system.
G007169-0 (4G LTE) G007170-0 (Wi-Fi/Ethernet) Mobile Link® Cellular Accessories The Mobile Link family of Cellular Accessories allow users to monitor the status of the generator from anywhere in the world, using a smartphone, tablet, or PC. Easily access information such as the current operating status and maintenance alerts. Users can connect an account with an authorized service dealer for fast, friendly, and proactive service. With Mobile Link, users are taken care of before the next power outage.

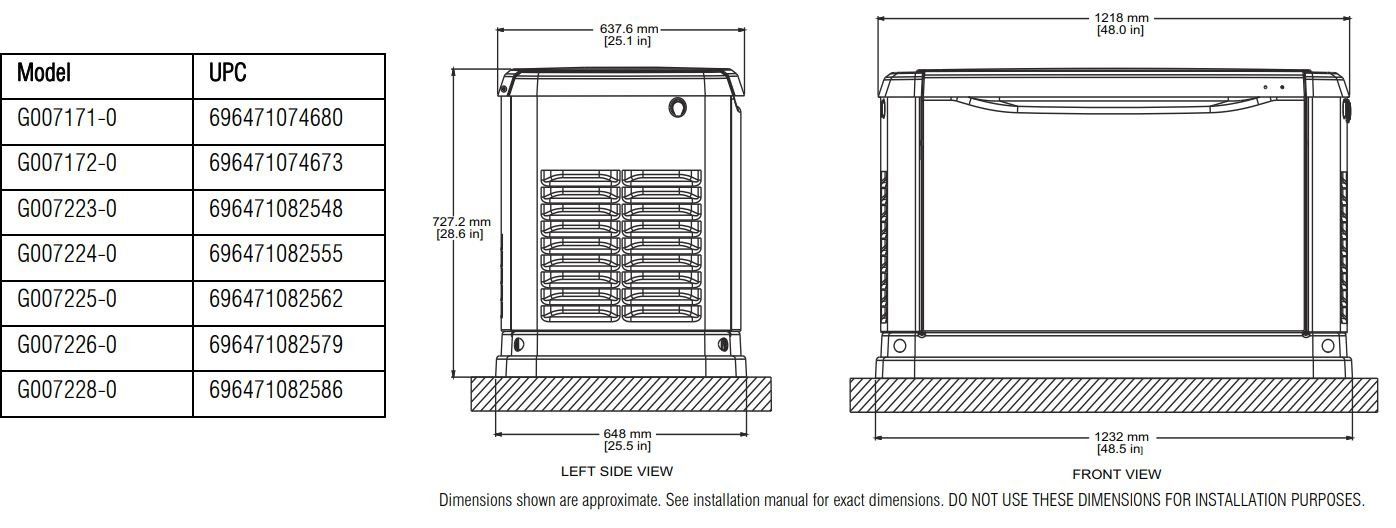

Dimensions & UPCs
