Features and benefits
Robust Design – The generator is designed to operate in cold weather with performance down to 0 °F (-18 °C) out of the box. The extreme cold weather models can perform down to -40 °F (-40 °C) out of the box. It is tested and certified per the latest EPA, UL, and CSA standards. The generator meets NFPA 37 which allows it to be installed 18 inches from a building. It has powerful motor starting ability and can easily start and run a 5-ton A/C¹ under full pre-load.
Intelligent Load Management - The generator can control up to 4 loads and continuously monitors how much power is required independently for each load. It then controls each load for maximum utilization of generator power by only restoring loads the generator has capacity to run.
Flexible Exercise Modes - Exercise modes can be set for time, date, and frequency that suits the owner. Our patented ‘Crank only’
exercise mode allows the generator to crank the engine and run diagnostics without starting the engine. This reduces wear and tear on the engine, fuel costs, and further reduces the sound of an already quiet generator.
Remote Monitoring - Remote monitoring is built into every generator. Using a computer, tablet, or smart phone, an operator can monitor, change exercise modes, and manually run the generator remotely.
Generator and ATS packaged sets – The RS20AC comes with a 20-kW generator and 200A service entrance rated ATS in one box to make ordering more convenient.
Weight, size and sound level
- Size: Length: 34.1 in (865 mm), Width: 36.0 in (915 mm), Height: 27.3 in (694 mm)
- Sound: 65 dB(A) at 23 ft. (7 m) at normal load2
- Voltage / Frequency: 120/240V / 60Hz
| Series | Model | Part number | Extreme Cold Weather | Rated amp3 (NG / LPV) | Weight Lbs. / Kg |
|---|---|---|---|---|---|
| RS13A | C13N6H | A061C591 | No | 54.2 / 54.2 | 479 / 217 |
| RS17A | C17N6H | A061C596 | No | 70.8 / 70.8 5 | 531 / 241 |
| RS20A | C20N6H | A061C601 | No | 75 / 83.3 | 531 / 241 |
| RS20AC | C20N6HC | A061C602 | No | 75 / 83.3 | 596 / 271 |
| RS13AE | C13N6H | A062E510 | Yes | 54.2 / 54.2 | 479 / 217 |
| RS17AE | C17N6H | A062E511 | Yes | 70.8 / 70.8 | 531 / 241 |
| RS20AE | C20N6H | A062E512 | Yes | 75 / 83.3 | 531 / 241 |
| RS20ACE | C20N6HC | A062E513 | Yes | 75 / 83.3 | 596 / 271 |
Engine
- Natural gas/propane
- Engine air cleaner
- Engine oil (Synthetic)
- Oil drain extension tube
- Low oil pressure shutdown
Fuel System
- Single fuel – natural gas or propane vapor, field selectable (Set to Natural gas from factory)
Alternator
- 60 Hz, 1 phase, < 5% THD (total harmonic distortion)
- Long life electrographic DC brushes
- Slip ring heater
Alternator
- Display language – English
- Under hood built in display
Electrical
- Single 100A circuit breaker, UL certified (On all models)
- Battery charging alternator
- Battery charger – 4 Amps
Cooling
- Single direct drive blower
Enclosure
- Aluminum exterior, galvanized steel interior
- Evaluated to withstand 180 MPH wind loads in accordance with ASCE7-10
Code Compliance
- UL 2200
- CSA 22.2 and B149.1
- EPA emissions
- NFPA 37 – 18 inches
Warranty
- Base: 5 years / 2000 hours
- Extended warranties available
Generator Set performance
- Voltage regulation, no load to full load: ±1.25%
- Steady state voltage variation: ±1.25%
- Frequency regulation: Isochronous Motor starting kVA (30% voltage dip): 40 for RS20A/AC, 34 for RS17A, and 26 for RS13A
- Steady state freq. variation: ±1.25% (±1.5% @ No load)
- Operating temperature: 122 °F (50 °C) to -40 °F (-40 °C)
Engine
- Model: QSJ999G
- Design: Naturally aspirated, V twin air cooled
- Bore: 3.54 in (89.9 mm)
- Stroke: 3.09 in (78.5 mm)
- Displacement: 60.96 inch3 (999 CC)
- Cylinder block: Aluminum
- Battery capacity: Group 51R, 450 CCA at ambient temperature of 32 °F (0 °C)
- Starting voltage: 12 volt, negative ground
- Oil Filter type: Spin-on Rated speed: 3600 rpm
Fuel supply pressure
- Minimum - in H2O (kPa): NG - 3.5 (0.87) / LP - 6.0 (1.49)
- Maximum - in H2O (kPa): NG - 12.0 (3.0) / LP - 12.0 (3.0)

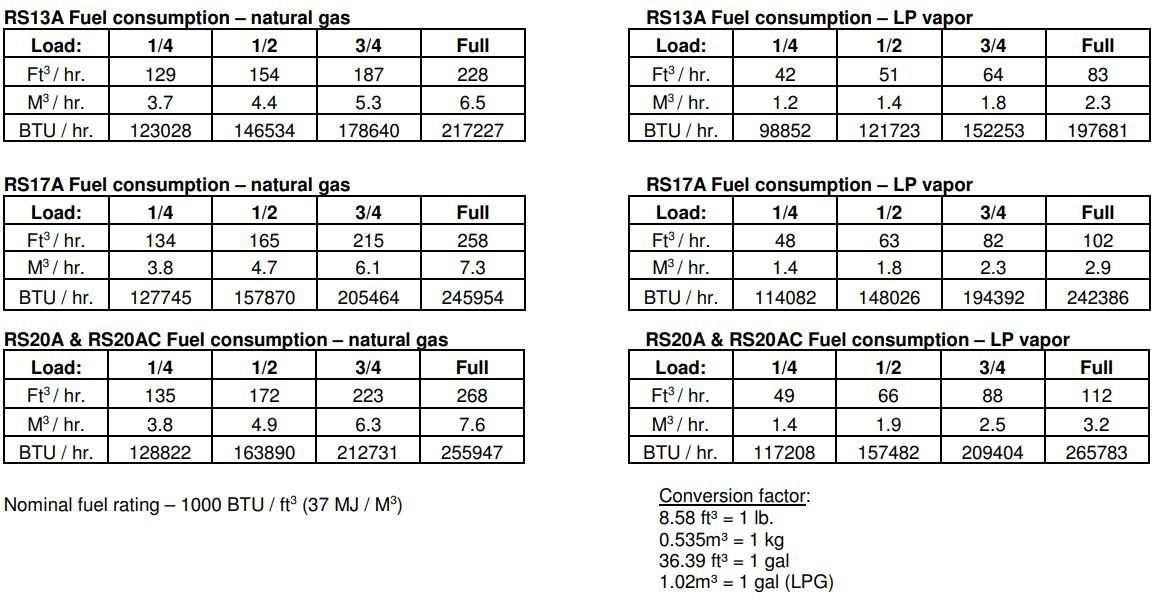

Average fuel consumption

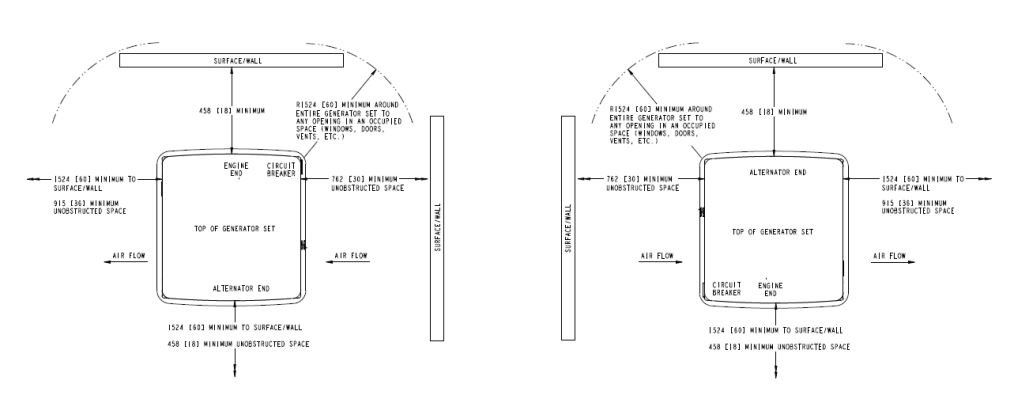

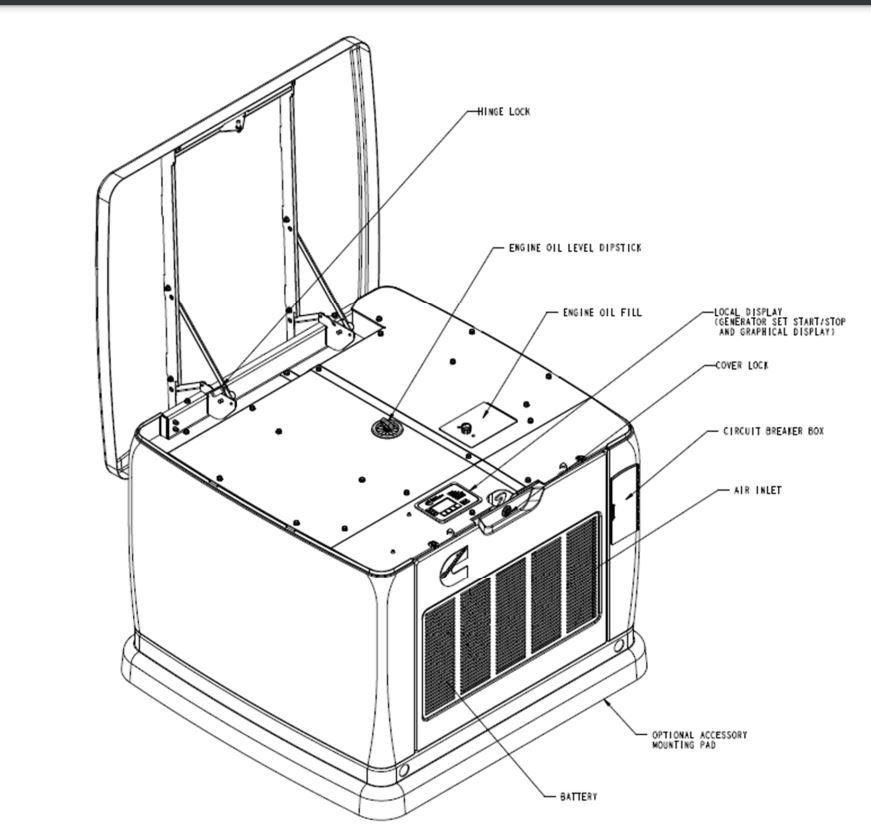

Easy service and installation
Easy service and installation

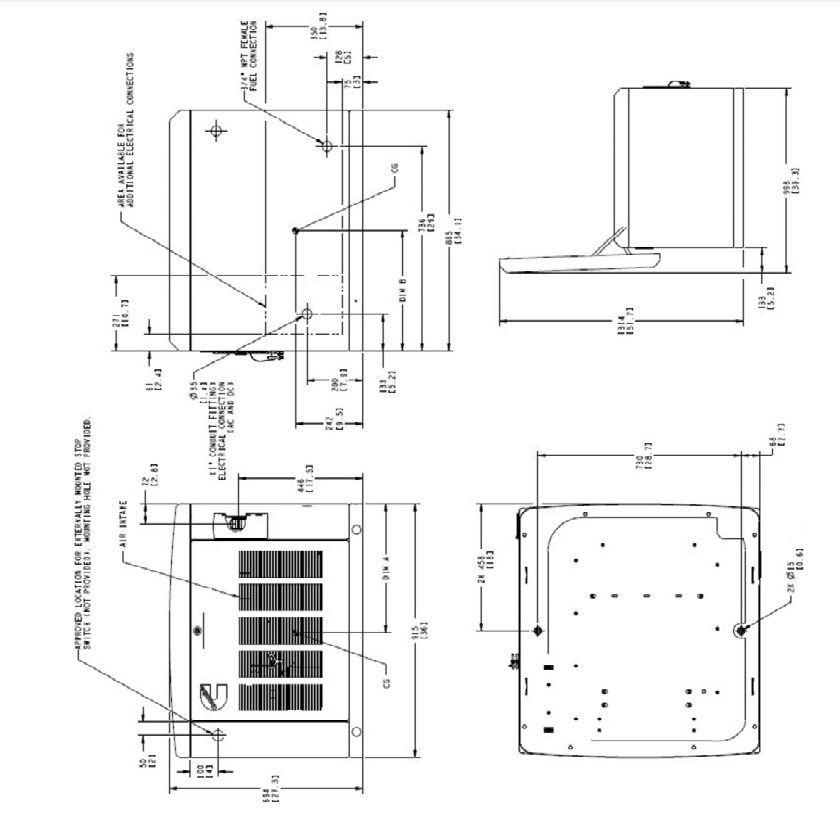

Note: This outline drawing provides general reference only and is not intended for use in design or installation. For more information, see Operators and Installation manuals or contact your distributor or dealer for assistance.
Accessories
- RS In-home display (A053K028) - Additional interface and display to monitor generator performance from a second location.
- Extreme Cold Weather Kit (A054B984) – For locations where the generator will be in climates that can go below 0 °F (-18 °C). Not needed on extreme cold weather models.
- Enclosure Paint Touchup Kit (A043J735)
- Preventative Maintenance Kit (A054H068) – Parts for scheduled maintenance intervals
- Load Add/Load Shed Device (A051C329) – Allows generator to control up to 2 - 50A loads
- Integrated ATS & Load Panel (A051C991) – Combines an 100A Non-Service Entrance (NSE) ATS with a load panel in an NEMA 1 box
- Concrete Composite Mounting Pad - 3” thick, 1” overhang composite pad for mounting the generator on (A052A795 for a single pad, A057M349 for 5 pads, and A057M351 for 10 pads)
- E-stop Kit (A044Z051) - Externally mounted emergency stop button allows for additional safety
- Battery (A052Y816) - Group 51R, 450 CCA
Transfer switch (also sold separately)
- Automatic Transfer Switches available in various amperages.
- Service Entrance and Non-Service Entrances models are available.
- Available for both Indoor and Outdoor applications.
- All models UL listed to UL 1008 standard.
- Compatibility with the Cummins generator set helps reduce the installation time for the complete application.
Warranty policy
The Cummins Power Generation RS13A, RS17A, RS20A, and RS20AC generators come standard with a 5 year / 2,000 hour limited warranty. RA Automatic Transfer Switches come standard with a 2 year warranty. Extended warranty options available. See warranty statement for additional details.
After sale support
Largest distributor/dealer support network Cummins Power Generation generator sets are supported by the largest and best trained worldwide
certified distributor/dealer network in the industry. This network of knowledgeable distributor/dealers will help you select and install the right generator set and accessories to meet the requirements of your specific application. This same network offers a complete selection of commonly used generator set maintenance parts, accessories and products plus manuals and specification sheets. Plus, they can
answer your questions regarding proper operation, maintenance schedules and more.
Manuals: Operation and installation manuals ship with the generator set. To obtain additional copies or other manuals for this model, see your distributor/dealer. To easily locate the nearest certified distributor/dealer for Cummins Power Generation generators in your
area, or for more information, contact us at 1-800- 888-6626 or visit power.cummins.com.
